Product Overview



Global logistics and heavy industrial distribution require packaging consumables engineered for high tensile strength, puncture resistance, and reliable load retention. wxmaterial.com manufactures industrial-grade protective shipping supplies—specializing in multilayer cast stretch films, heavy-duty air cushion systems, and precision void-fill packaging.
Built for high-throughput automated warehouses and rigorous export supply chains, our product lines secure irregular pallet loads, cushion fragile components, and eliminate void movement during intermodal freight transit without adding excessive tare weight.


First 123 Last

Key Features



High Retained Tension



Multi-layer co-extruded stretch films provide superior load memory, preventing shifting during long-haul trucking and ocean container transport.

01

Controlled Burst & Puncture Resistance

High tear propagation resistance ensures sharp-edged industrial parts or uneven pallets do not breach film wraps or air chambers.

02

Stable Air Retention



Inflatable cushioning systems utilize virgin polyethylene (PE) formulations with advanced heat-seal technology, maintaining internal pressure under pressure and temperature fluctuations.

03

Automated Line Compatibility



Uniform thickness and high-speed unwind properties minimize machine downtime on automatic wrapping and on-demand air-pillow packing systems.

04

Environmental Compliance



100% recyclable mono-material polymer structures meeting strict EU packaging directives and RoHS/REACH chemical safety standards.

05



Technical Specifications



Specification

Stretch Film Series

Air Cushion / Pillow Series

Test Method / Standard

Material Composition

100% Virgin LLDPE (Linear Low-Density Polyethylene)

Co-extruded Virgin PE / PA Composite

ISO 1183 (Density)

Film Thickness (Caliper)

15 micrometers to 35 micrometers (+/- 5%)

30 micrometers to 120 micrometers

ISO 4593

Tensile Strength at Break

Greater than or equal to 35 MPa (Machine / Transverse Direction)

Greater than or equal to 25 MPa

ASTM D882

Ultimate Elongation

Up to 300% to 450% (Pre-stretch capability)

Greater than or equal to 400%

ASTM D882

Puncture Resistance

Greater than or equal to 40 N

Burst Pressure greater than or equal to 0.2 MPa

ASTM D5748 / Internal

Air Retention Rate

N/A

Less than or equal to 5% pressure loss over 48 hours

ASTM D3103

Operating Temperature

-20°C to +60°C

-30°C to +70°C

Environmental Test



Applications

Automotive Manufacturing & Spare Parts

Heavy-duty stretch wrapping secures irregular engine components, transmissions, and stamped metal panels on export steel pallets.

E-Commerce Fulfillment & 3PL Logistics

On-demand air pillows and void-fill packaging absorb transit shock in high-velocity parcel sorting environments.

Electronics & High-Value Hardware

Anti-static and high-clarity films protect sensitive instrumentation housings and appliance surfaces against abrasion and dust ingress.

Industrial Machinery & Export Crating

Secure containment of heavy assemblies, preventing shifting and surface scuffing during multi-week marine freight journeys.





Customization & OEM Solutions

Operating as a direct manufacturer, we provide comprehensive technical customization to match specific packing line requirements:


Dimensional & Gauge Optimization: Custom roll widths (from 100 mm to 1,800 mm), core inner diameters (2 inch / 3 inch), and exact micron gauges to optimize wrapping costs per pallet.


Co-Extrusion Formulation: Customized additive integration, including UV inhibitors for outdoor storage, anti-static (ESD) properties, and slip/cling modifications for specific automated machinery.


Private Labeling & Core Printing: Custom-printed paper cores, branded outer carton boxes, and custom-tinted film colors (minimum order quantities apply).

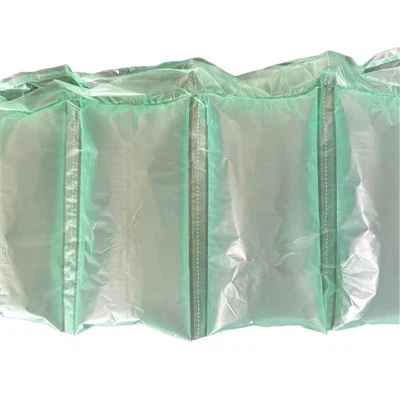

Air-filled Buffering Packaging



Quality Control


Every production batch undergoes strict instrumental and destructive testing prior to warehouse release

Raw Material Verification

Incoming virgin LLDPE resins are tested for Melt Flow Index (MFI) and density consistency.



On-Line Gauge Scanning

Automated beta-ray or X-ray gauges monitor film thickness profile across the entire web width in real-time, eliminating thin spots.

Physical Property Testing

Routine laboratory tests measure tensile strength, puncture resistance, dart drop impact, and dynamic heat-seal integrity.

Traceability System

Each master roll carries a unique QR/barcode linking production parameters, raw material lot numbers, and machine operator records.



Packaging & Shipping





Export-Grade Protection

Rolls and air pillow rolls are shielded with moisture-barrier wrapping, edge protectors, and secured on fumigation-free plastic or heat-treated wooden pallets.



Container Optimization

Pallet configurations are mathematically optimized for standard 20ft and 40ft high-cube container loading to minimize ocean freight shipping costs.



Documentation Support

Complete compliance documentation provided, including Mill Test Certificates (MTC), Bill of Lading, Packing List, and Certificate of Origin.







Frequently Asked Questions





Q: What is the Minimum Order Quantity (MOQ) for custom-gauge stretch films or air cushions?

A: For standard stock items, MOQ is 1 pallet. For custom thickness, roll widths, or printed branding, the MOQ typically starts at 2,000 kg or 1 full 20ft container (FCL) to optimize production extrusion setup.

Q: How do you prevent stretch film from losing tension or snapping during high-speed pallet wrapping?

A: We use 100% virgin LLDPE with high stress-crack resistance and controlled melt flow indexes. Our multi-layer co-extrusion technology yields high puncture and tear propagation resistance (greater than or equal to 40 N), allowing up to 300% to 450% pre-stretch rates without web breaks.

Q: Can these film formulations withstand prolonged outdoor UV exposure at distribution yards?

A: Standard films are designed for indoor warehouse storage and standard transit. For goods exposed to outdoor sunlight for extended periods, we offer custom UV-stabilized formulations upon request.

Q: What is the standard lead time from order confirmation to dispatch?

A: Standard stock specifications ship within 5 to 7 business days. Custom OEM orders, specialized gauges, or branded print runs typically require 15 to 20 business days.



modular-1
Request a Technical Quotation

Submit your operational parameters below to receive factory-direct pricing, technical data sheets (TDS), and sample rolls within 24 hours.
Required RFQ Parameters:
Product category (Stretch Film, Air Cushioning, Void Fill).
Target specifications (Thickness/Micron, Width, Length, or Air Pillow dimensions).
Estimated monthly or annual consumption volume.
Destination port and application machinery type (Manual, Semi-Automatic, Fully Automated).

As one of the most professional protective shipping supplies manufacturers in China, we're featured by quality products and good price. Please rest assured to buy advanced protective shipping supplies made in China here from our factory. Contact us for pricelist.
